油管短接，是指短于R1长度的油管。其长度通常有0.3米--6米。及国外习惯用的1FT-20FT等。基本规格，钢级，使用环境都和普通油管一样。管体执行API Spec-5CT第九版。螺纹加工执行API Spec-5B-2008。
种类分为：短接常见的分为普通短接，双公短接，整体加厚短接。

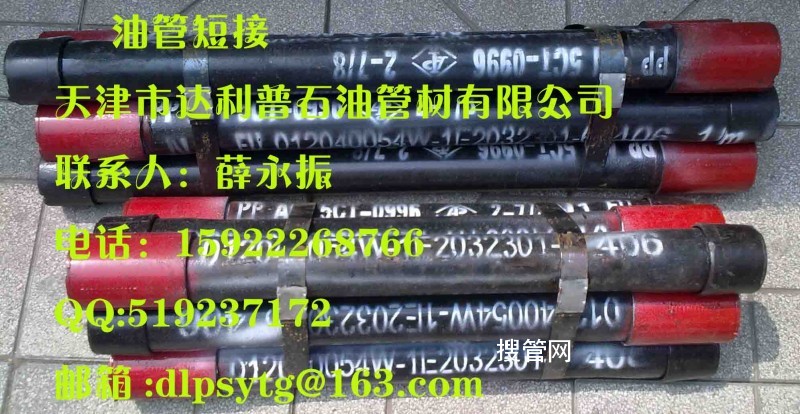

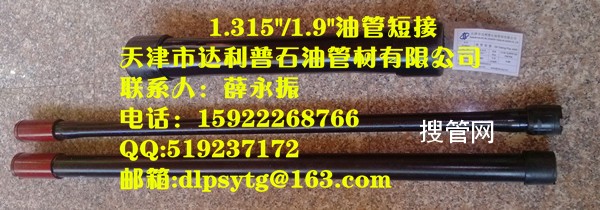

油管短接/套管短节
标准：API SPEC 5CT、API SPEC 5B、ISO 11960
尺寸：1.9" to 4-1/2"
钢级： J55, K55, N80-1, N80-Q, L80, C90, P110;
端部加工形式：STC,LTC,BTC,EUE,NUE，IJ,N-VAM,VAM TOP,HYD CS PH6;
长度：2FT-20FT
用途：钻井，采油，压裂
Tubing and casing pup joint
1. Size: 1.9 inch to 20inch;
2. End Type: NU, EU, STC, BTC, LTC,IJ;
3. Steel Grade: J55, K55, N80, L80, P110;
4. Specification: API Spec5CT and 5B
5. Dimensions and their tolerances of tubing round-thread as per API spec 5B
6.Protection of Thread: Thread protector
7.Our tubing and casing pup joint conform to API 5CT standard, lengths 2’. 4’.6’.8’10’ and we can make different lengths and sizes according to the customer’s requests.
